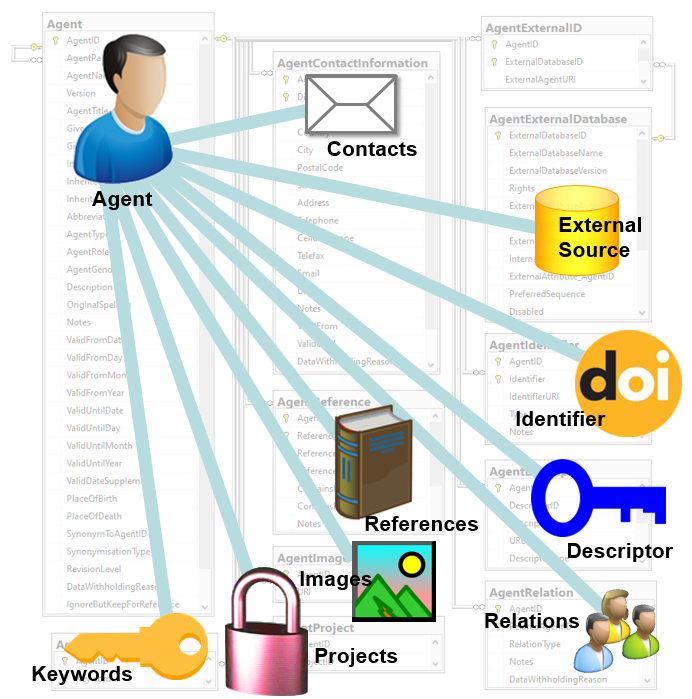

The image below shows the main datadomains within DiversityAgents.
The database for DiversityAgents based on Microsoft SQL-Server 2014 or above.

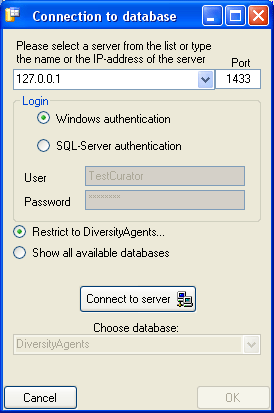

To access the database select
from the menu. A dialog will open, where you can specify the name or
IP-adress and port number of the server and the authentication mode.

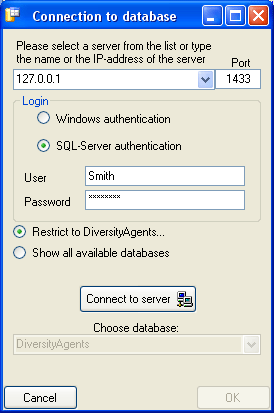

The standard port number for SQL-Server is 1433 and will be set as a default (see left image above). If the database server is configured using a port different from that port, you must give the port number in the field Port (see left image above). If the connection informations are valid, you can choose a database from the server. In the main form you can select the databases that are available under Connection, Database...

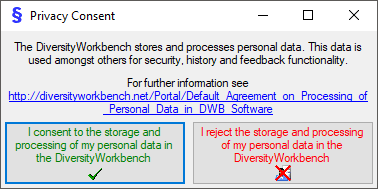

If you access a database for the first time you will be asked to consent to the storage and processing of your personal data (see below) according to the General Data Protection Regulation. Without your consent the access is not possible.
The connection to the databases by default is
encrypted, symbolized by the
icon. To change to an not encrypted connection, click on the icon which will
change to
accordingly, indicating a not encrypted connection.

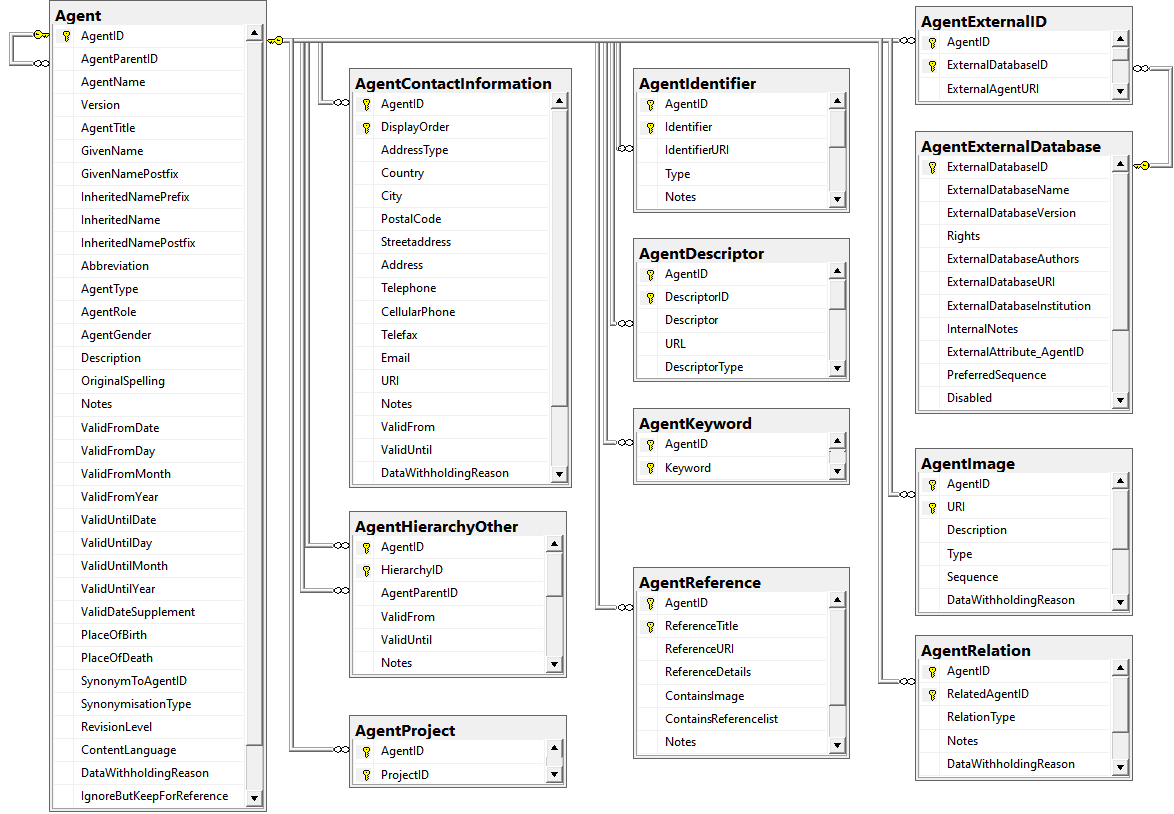

The main data are kept in the table Agent. Contacts are listed in the table AgentContactInformation (see below). For further tables and details see the table descriptions.
