Module connections

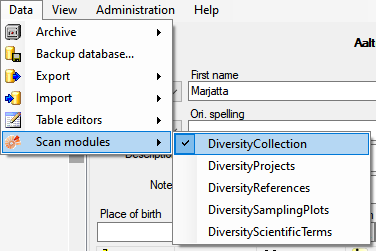

The DiversityWorkbench is a set of components for building and managing biodiversity information, each of which focuses on a particular domain. DiversityAgents is referred by several modules. To scan for references from these modules on data in DiversityAgents choose Data - Scan modules - ... from the menu (see image below).

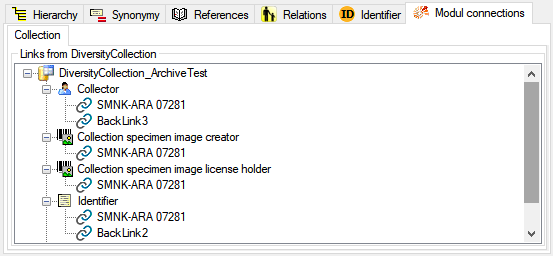

With these options the program will scan all sources of the selected module as listed in the connections for references to the current agent. After selecting an agent in the tree, the sources of the selected modules together with the linked data will be listed as shown below.

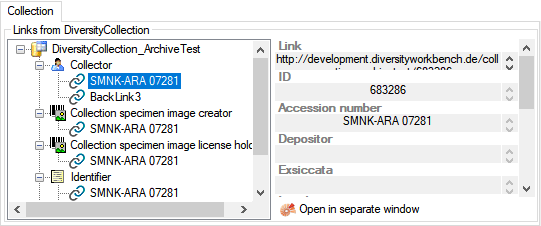

Select a link to see a summary of the linked data (see below).

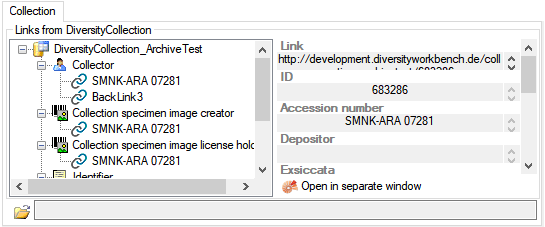

To get further information about an item click on the button. If so far the path to the respective application has not been set, you will get a corresponding message (see below).

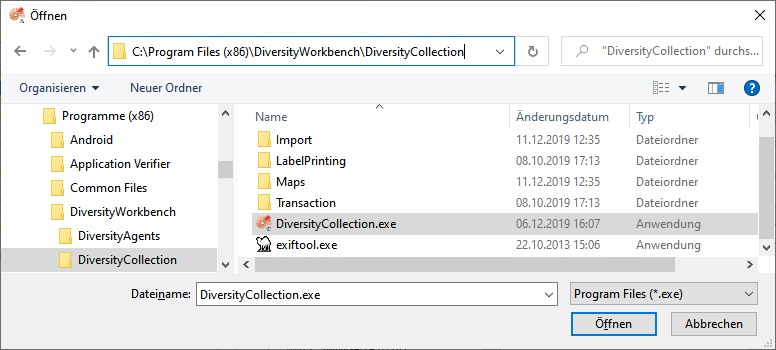

Click on the button to set the path to the application (see below).
