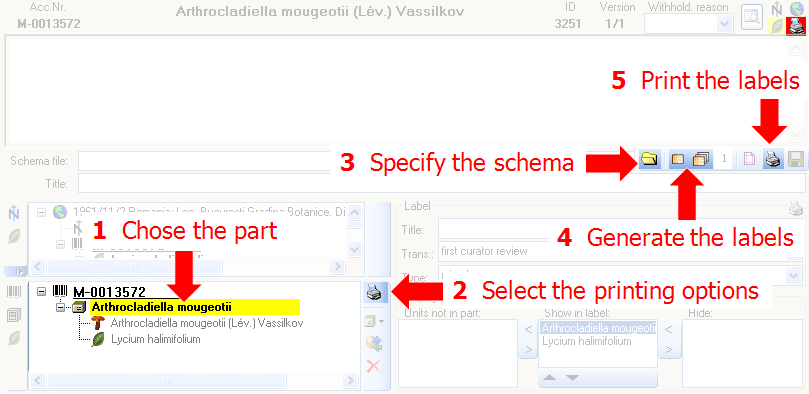

Select the printer in the header menu to switch to the printing mode. If your specimen contains more than one part, choose the part of the specimen for which the label should be generated. The sequence is shown in the image below and in a short tutorial .


Additional information about a label is entered in the label section (see image below). The title may contain a longer text that can be displayed by switching from a combobox to a textbox using the resp. button to return to the combobox. The data are stored in the table CollectionSpecimen.


The organisms of a specimen are printed on a label according to the display order.

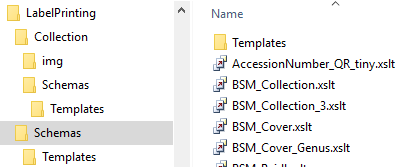

To print a label for a specimen you have to select a schema file. There are default schema files available in the folder LabelPrinting/Schemas in your application directory (see below). This is the default place to store schema files.

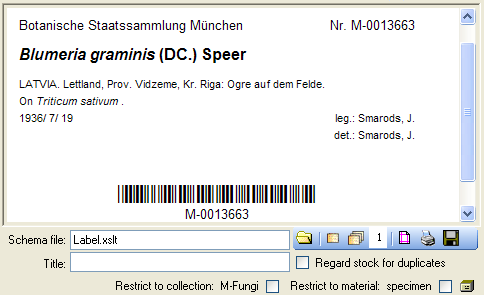

Click on the  button to open the directory. You will find several prepared schema files among which you can choose or change them to your own needs or create new ones respectively. The schema file /LabelPrinting/Schemas/Templates/LabelTemplates.xslt provides templates for the other schema files. If this file is missing the generation of the label may fail and you will get a warning. You may give a title for the print in the field Title. From the Collection and MaterialCategory available for the selected specimen choose one from the list (Coll./Mat.). To generate the label for the current specimen click on the  button. To generate labels for all specimens selected in your query click on the  button (you may use the button to select all specimens). If you need duplicates of your labels change the number in the duplicates box to the desired value. You can print 1 - 99 duplicates of one label. If there are more than 20 specimens in the list, you receive a warning whether you really wish to create all these labels as this could be somewhat time consuming. The labels are generated as XML files with XSLT-schema files, transformed to HTML-files and depicted in a browser. To print the label click on the  button.

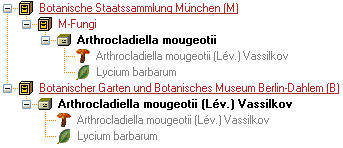

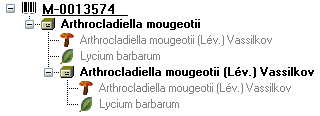

If you wish to print labels for duplicates which are stored in a different collection, the duplicate should be a child of the original specimen as shown in the example below.

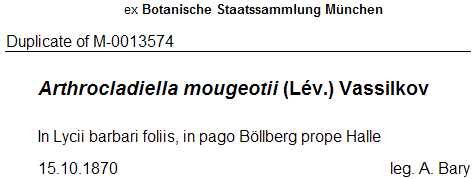

Depending on the schema you use, the label will be marked as duplicate and contain a reference to the original specimen (see below).

If you wish to save the generated files for later printing, click on the  button to do so. Note that the program will by default create a file Label.xml and in case a schema file is specified a file Label.htm in the LabelPrinting directory which will be overwritten every time you generate a new label. Thus, you need to save the file under a different name or in a different directory to prevent the program to erase this data.

If you wish to print labels for all the specimens in the specimen list, you can restrict these to the collection and the material category of the current specimen part (see image above).

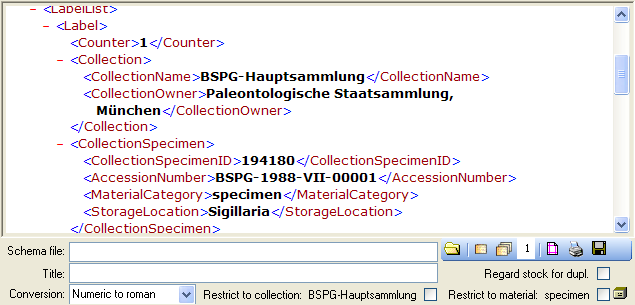

If you do not select a schema file, i.e. the textbox Schema file: is empty, you will see the generated XML-file as shown in the image below. The XML file is the base for all label types you wish to generate. To create your own labels simply design your own XSLT-schema file . See e.g. for further information about schema files.

If you wish to reformat the accession number, you may choose among the options provided by the program, e.g. conversion of arabic to roman numbers (BSPG-1988-007-00001 -> BSPG-1988-VII-00001). Select the format from the combobox [Conversion] shown above.



For a short tutorial about the inclusion of codes in the label see a short tutorial .

Code 39

If you use Code 39 for your labels and wish to print the barcodes on the labels, you need the font  , which is included in the DiversityCollection package. Place this font in the folder where your fonts are stored (e.g.: C:\WINNT\Fonts). If the font is not available, the barcode will appear as the accession number between two '*' signs. If this font does not do the job you may try other fonts, e.g. code 39 from logitogo. Download the font, copy it into your fonts directory and adapt the xslt file according to the line below:

<xsl:variable name="FontBarcode"> font-size: 10pt; font-family: Code-39-Logitogo</xsl:variable>

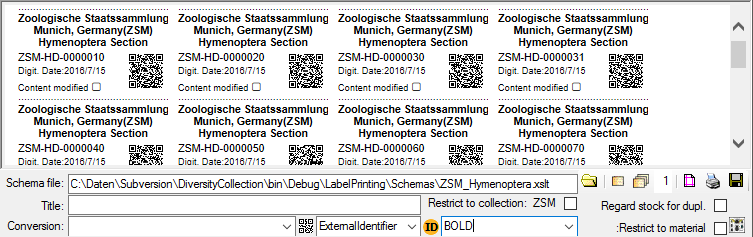

To include a QR-Code in the label, activate the QR-Code generator and select the source for the QR code (e.g.: AccessionNumber, CollectorsEventNumber, DepositorsAccessionNumber, ExternalIdentifier, PartAccessionNumber, StableIdentier or StorageLocation). For certain sources you can specify the type of the source (see below). Depending on your XSLT-schema the QR code will appear in your label (see below). The QR-Codes are generated via a Google-Api, which is only available if you have access to the Internet. The created QR-Code images will be stored in the folder LabelPrint/img. This folder will be cleared for every printout. So if you want to keep the label you need to copy the created file Lable.html together with the folder img.
