Sources from other modules

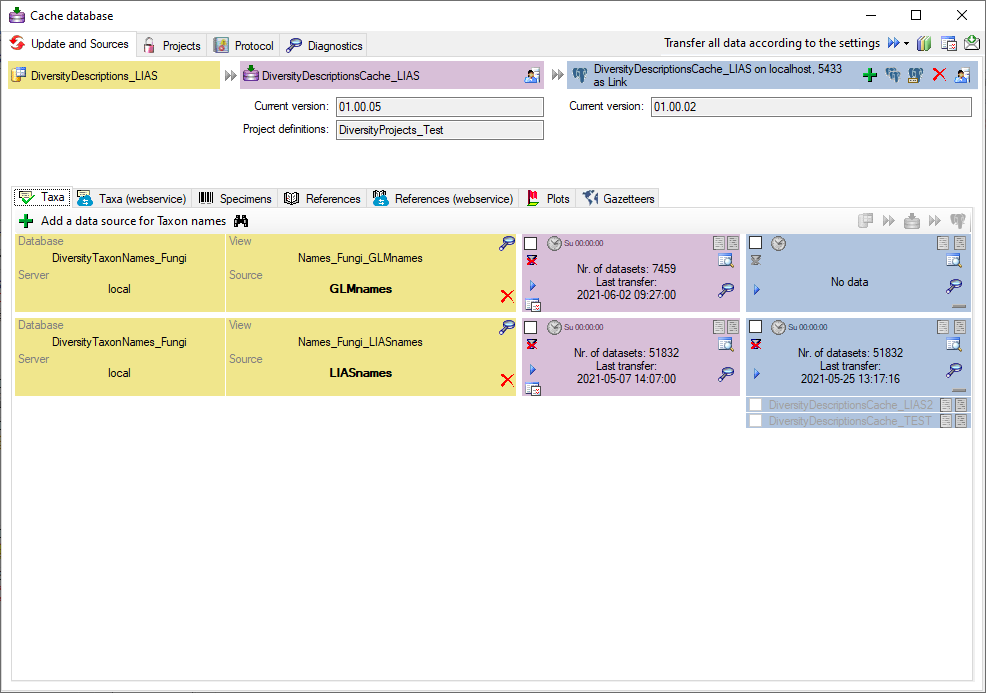

To provide details from other modules like DiversityTaxonNames, DiversityCollection, DiversityReferences etc. in the cached data, this information is transferred into the cache database together with the data from DiversityDescriptions database. Use the button to add a source for the data you need. You may include data from a local or a linked database. The data for the cache database are provided via views that will be created for you. With the button you can list the sources used in the projects to get a hint of what may be needed. The tables and view for the sources are placed in the schema dbo in the SQL-Server cache database and public in the Postgres cache databases. In case a new version for the source is available you get a notation like  Needs recreation to version 2 . In this case you must remove the source with a click on the button and use the button to recreate the source. For the inclusion of sources from services like Catalogue of Life see the chapter Sources from webservices.

Subsets

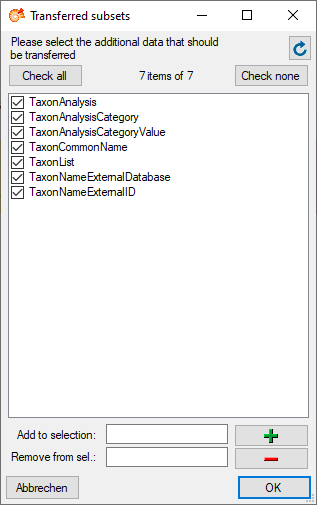

The sources of some module provide additional subsets to the main data. To select the subsets that should be transferred to the cache database, click on the button. In the upcoming dialog (see the example for DiversityTaxonNames below) select those subsets you want to transfer in addition to the basic name list.

Transfer

Single manual transfer

To transfer the data of a single source into the   cache database use the button and the buttons to inspect the content.

To transfer the data into the Postgres database, you have to connect with a database first. Use the button to transfer the data from the   cache database into the  Postgres database. The button will transfer the data of all sources in the list into the cache database (see below).

Scheduled transfer

To transfer the data of all sources into the   cache database and all available Postgres databases, use the scheduled transfer as background process. With this transfer all available Postgres databases will be included in the data transfer. These targets are indicated underneath the Postgres block (see image below).

If the target is placed on the current server, the text will appear in black as shown below.

Removal

With the button you can remove the sources together with the views (see above).

Orphaned data

In some cases, e.g. if a datasource is removed from the   cache database and there is no active connection to the Postgres database, the corresponding data will stay in the postgres database. These orphaned data might disturb subsequent data transfers, if they overlap with the remaining data. Their source view and number of datasets are shown in section "Source views not present in the SQL-Server database" (see below). Click on button to delete the orphaned data.
