The exported data may be transformed e.g. to adapt them
to a format demanded by the user. Click on the
button to open a window as shown below. (For an introduction see a short tutorial
from DiversityCollection
.)
Here you can enter 6 types of transformation that should
be applied to your data.
Cut out parts,
Translate contents from
the file, RegEx apply regular expressions or
Replace text and apply Calculations
or Filters
on the data from the file. All transformations will be applied in the sequence they
had been entered. Finally, if a prefix and/or a postfix are defined, these will
be added after the transformation. To remove a transformation, select it and click
on the
button.
With the
cut transformation you can restrict the data taken from the file to a part of the
text in the file. This is done by splitters and the position after splitting. In
the example below, the month of a date should be extracted from the information.
To achieve this, the splitter '.' is added and then the position set to
2. You can change the direction of the sequence with the button
Seq starting at the first position and
starting at the last position. Click on the button Test the transformation
to see the result of your transformation.

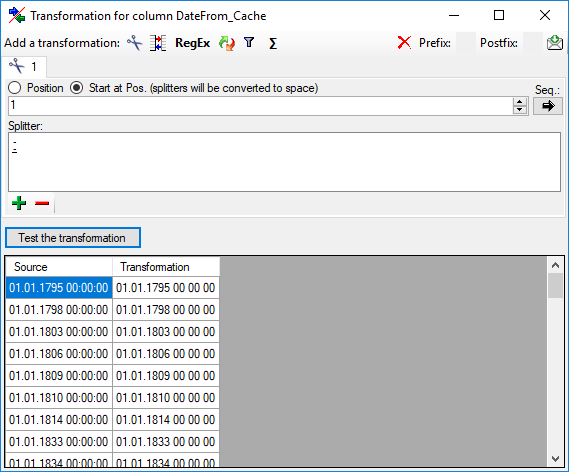

With the Start at Pos. option the given splitters will be converted into space (' ') and the whole string starting with the given position will be used (see below).
The
translate transformation translates values from the file into values entered by
the user. In the example above, the values of the month should be translated from
roman into numeric notation. To do this click on the
button to add a translation transformation (see below). To list all different values
present in the data, click on the
button. A list as shown below will be created.
You may as well use the
and
buttons to add or remove values from the list or the
button to clear the list. Then enter the translations as shown below. Use the
save button to save entries and the Test the transformation button to see
the result.
To load a predefined list for the transformation use the
button. A window as shown below
will open. Choose the Encoding of the data in your translation source and
indicate if the
First line contains column definition. Click OK to use the values from the
file for the translation.
The transformation using regular expressions will transform the values according to the entered Regular expression and Replace by values. For more details please see documentations about regular expressions.
The replacement transformation replaces any text in the data by a text specified by the user. In the example shown below, the text "." is replaced by "-".
The calculation transformation performs a calculation on numeric value, dependent on an optional condition. In the example below, 2 calculations were applied to convert 2-digit values into 4 digit years.
The filter transformation compares the values from the
data with a value entered by the user. As a result you can either
Export content into file or
Export fixed value. To select another column that should be compared, click
on the
button and choose a column from the file in the window that will open. If the column
that should be compared is not the column of the transformation, the number of the
column will be shown instead of the
symbol. To add further filter conditions use the
button. For the combination of the conditions you can choose among AND and OR.
