Tasks are used for example to
organize IMP within a collection. The tasks possible for a

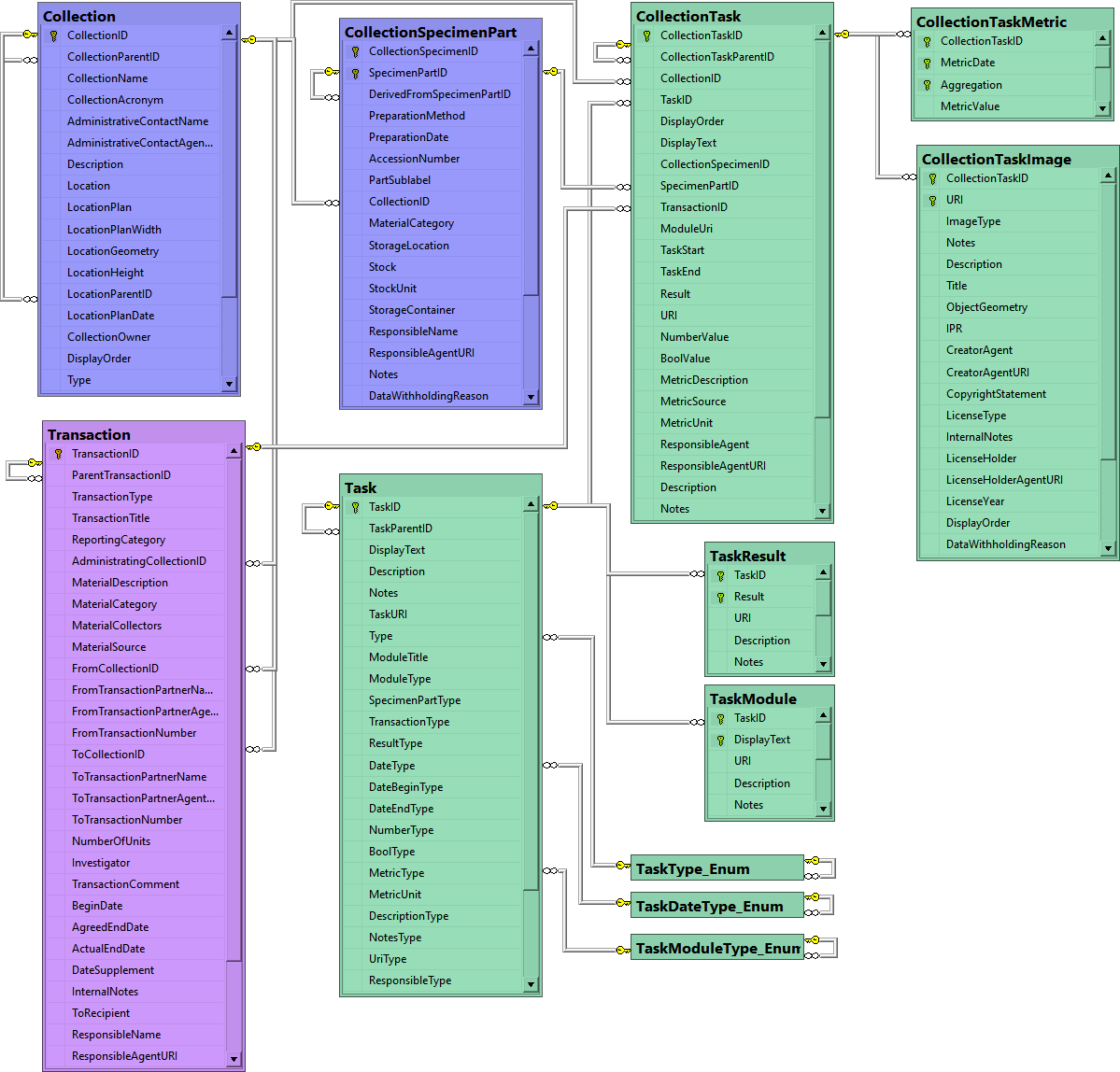

collection are defined within the table Task. The tables related
to tasks within a collection are shown in the diagramm below.
Task contains the definitions for the
tasks. The tables
TaskModule contain predefined list for results resp.
links to a DiversityWorkbench module. Types for the tasks are
defined in the table
TaskType_Enum. The table
finally contains the tasks for a collection, the table
CollectionTaskMetric numeric values collected e.g. by a
sensor and the table
CollectionTaskImage holding any related
resources like images.

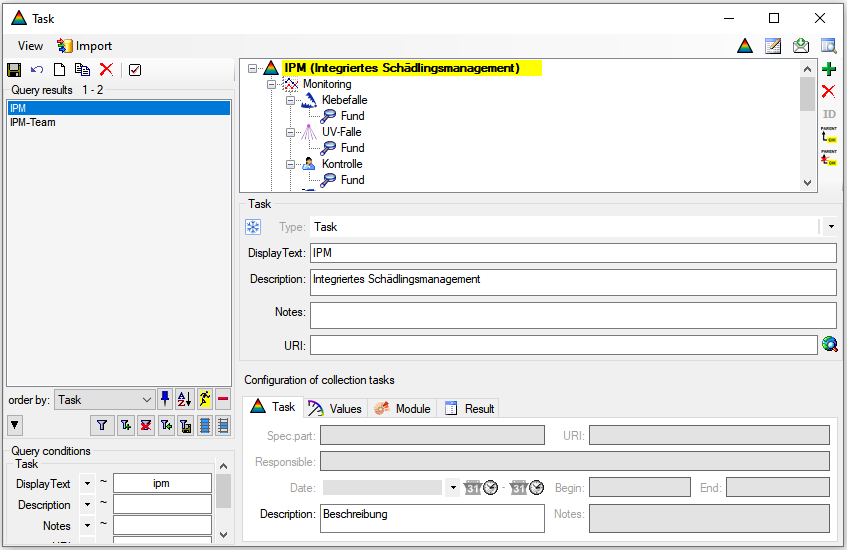

To define tasks, choose
from the menu. A window as shown below will open.
To show the site of the URI fo the
task if available, choose show URI.
To import data from a tab
separated text file, choose
from the menu. For further details see chapter
To edit types click on the
To edit the data with the datatable click on the
button. For details
check the TableEditors section.
To send a feedback to the software developer click on the
To view the history of a dataset,
click on the
window with the
history will open. For more details see the section History.
The details of the task like e.g. type or display text are set
in the upper part underneath the hierarchy (see above), the details for Collection tasks are defined in the lowest part. Only those properties that are
specified by any text or definition are availabe for the depending
collection tasks. There are several contents that are possible for a
insert a new analysis to an organism
select the organism in the upper tree. Then select the type of the
analysis from the drop down list
as shown below.
Specimen part: If the collection task is related to a certain part of a specimen in the collection
Transaction: If the collection task is related to a certain transaction
URI: If the collection task should contain an URI, the description for the URI
Responsible: If there is a responsible person or institution for a task, the corresponding description
Date: If the collection task should contain a date and or time.
- You can choose among several options:
Date from to
Date & Time
Date & Time from to
Time from to
Begin: If present, the description of the begin
End: If present, the description of the endS
Description: If the collection task should contain a desciption, the description for the desciption
Notes:: If the collection task should contain notes, the description for the notes

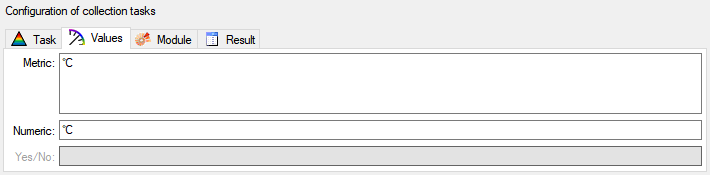

Metric:: If the collection task contains values collected from a sensor e.g. via Prometheus, the description for the metric
Numeric: If the collection task should contain a numeric value, the description for the numeric value
Yes/No: If the collection task should contain a boolean value, the description for the Boolean value
Module: If the collection task should contain a
link to a module of the DiversityWorkbench, the description and the
type of the module. There are several modules for which links may be defined

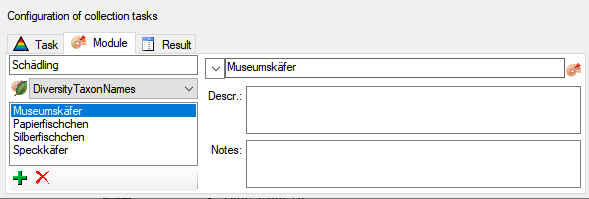

If the values should be taken from a list, the entries are defined here as shown in the image below
Result: If the collection task should contain a text result, the description for the result.

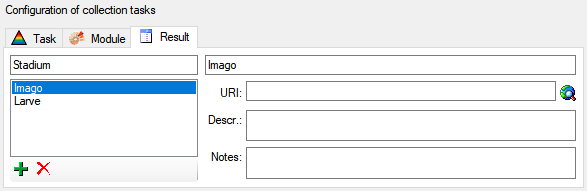

Similar to the module you can provide a list of values for selection
as shown in the image below.
