Editing the descriptor - Modifier/Frequency tab

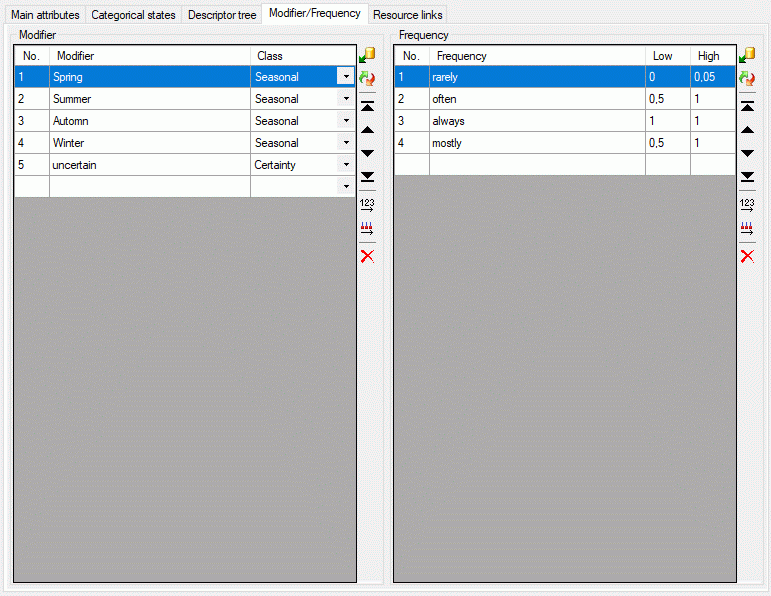

The Modifier/Frequency tab allows definition of modifier and frequency values. The sequence number column ("No.") determines the display sequence in selection lists. You may order the entries by clicking on a column header. With the arrow buttons ( ) you can move the selected entries up or down within the table, clicking button or shifts the selected entries to the top respective bottom of the table. After ordering the entries click button to renumber the table entries (starting with "1" for the first table entry) and make the changes effective. After pressing button column "Use" shows the number of references in the database for each modifier rsp. frequency value.

To enter a new modifier or frequency value, select the empty line on the end of the table and click on the "Modifier" rsp. "Frequency" field to enter the new values. After entering the new entry name automatically a new value for "No." is initialized. To delete an entry, select the entry and press the tool strip button, the Delete key or remove the value in the sequence number column ("No.").

There is a number of predefined modifier and frequency values commonly used. These values can be accessed by pressing the  button, which opens one of the windows shown below.



 By checking of uncecking the values, they can easily be inserted or deleted from the modifier rsp. frequency list. Values that are already used in the database are marked by a grey text colour. When these values are marked to be removed from the list, you will be asked for each single value if it really shall be deleted after pressing OK. New values are inserted at the end of the list (see below).



You may order the modifier and frequency values according the sequence of the predefined values by pressing the  button, which opens one of the windows shown below. Values that are not in the predefined lists will be shifted to the end of the list.
