Extended query parameter - Descriptor conditions
Press button
Add descriptor in the Query parameter tool strip to insert
a new query condition for the search of specific values in the description summary
data. A control representing a single descriptor filter will be added at the end
of the query parameter list. Now you have to select the descriptor that shall be
included in the search filter. This can be done by selecting the descriptor's
sequence number with combo box No.:, from an alphabetical descriptor
list with combo box Descriptor: or by selecting from the descriptor
tree with button

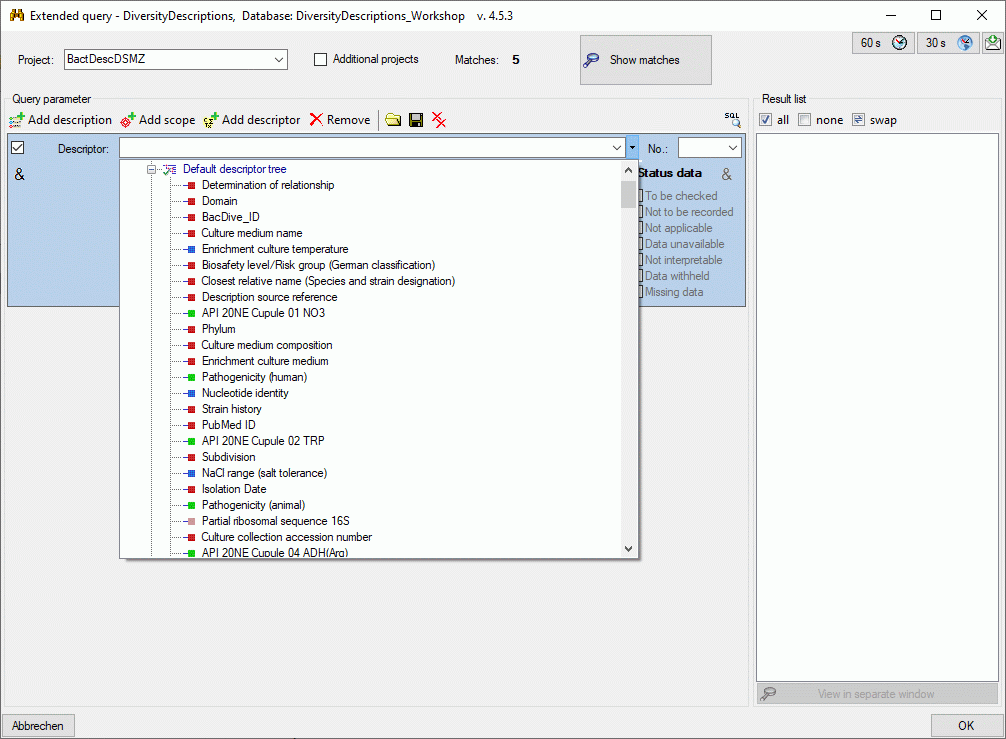

(see picture below).
After selecting the descriptor the query control shows

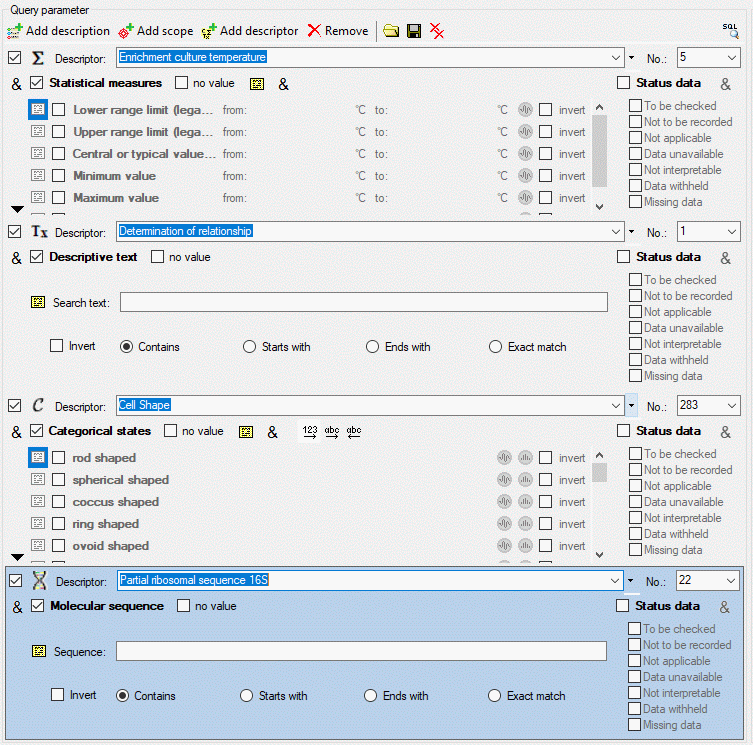

query parameters depending on the descriptor type (see below). You may search for
descriptions that do not have any data for the selected descriptor by checking option
absent. The currently marked parameter control is shown with light blue background. You can delete the current query
control by clicking on button
Remove or all query controls by clicking on button
in the Query parameter tool strip.
In the parameter control the descriptor type is indicated
by symbols in the beginning of the first line (
categorical,
quantitive,
text or
sequence). If additional information for the descriptor are available in the database,
you can show them as bubble help by moving the mouse cursor over the symbol. If
resource data are available for a descriptor, the symbol is displayed with coloured

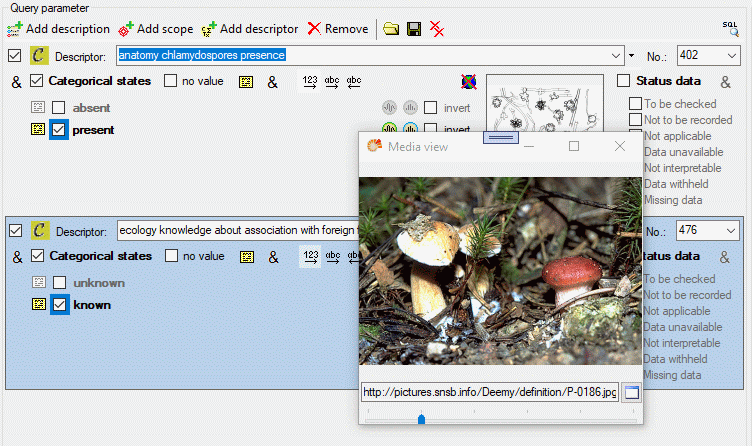

background and you can view them by double-clicking it (see image below).
Each parameter control has two main sections:
- At the left you find the section for the descriptor
parameter, depending on its type (Categorical
states, Statistical measures,
Descriptive text or
Molecular sequence). If this section is checked and no
other data have been entered, the query filters for all descriptions that include
any value for that descriptor, e.g. any descriptive text or any categorical state. You
may search for descriptions without descriptor data by checking option no value.
By entering additional query data, the filter becomes more restrictive.
- At the right you find the section for the descriptor
Status data. If this section is checked and no status value has
been selected, the query filters for all descriptions that include any status data
value for that descriptor. At the end of the Status data check
box by default the symbol
indicates that all selected data status values must be present in the matching descriptions.
By checking dedicated status data values, the filter becomes more restrictive (logical
AND). If you click on the
symbol you can change it to
(logical OR) to find matches
for any of the selected status data values.
If both sections are selected, matching descriptors must
fulfill both conditions, i.e. the value must be present and the status data value
must be set.
Notes
In the descriptive data you may enter free text notes
to all text and sequence data. Furthermore individual notes may be entered for every
selected categorical state and statistical measure. You may include additional query
contitions for each of those notes, therefore the symbol
is included at the appropriate places. To enter a query condition, click the button

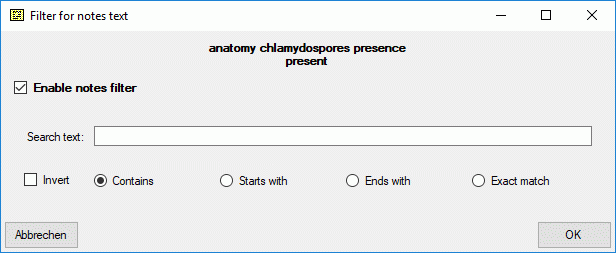

and a window as shown below will be opened.
You may enter a Search text that shall
be part of the notes text. Capitalization is not taken into account. For option
Contains the notes text must contain the search text. The options
Starts with and Ends with only check the descriptor
text begin rsp. end for a match. Finally option Exact match requires
identical texts. Check the option Invert to invert the search criteria.
You may use the wildcards _,
[] and [^] in your search
text, but not %. % is
automatically inserted in the correct places by selecting the matching option.When
you click OK the additional query condition will be active and
the icon background changes to red (
).
If you want to remove the query condition, open the notes form, uncheck the
Enable notes filter option and click OK.
For text and molecular sequence
data exactly one note is possible for each descriptor value, therefore you find
exactly one symbol
for entering a query condition. For categorical and quantitative
data you may enter a note for each single state rsp. statistical measure. Here you
may search for notes of the specific state rsp. measure by clicking on the
symbol located at the element. Additionally you may search for notes entered at
any state or measure of the descriptor. Therefore an additional symbol
is located in the header section besides the no value check box
(see image above).
Modifier and frequency
In categorical and quantitative descriptive data you may
select modifier values for every selected categorical state and statistical measure.
For categorical data additionally a frequency value may be selected. You may include
additional query contitions for each of those modifier and frequency values, therefore
the symbols
(modifier) and
(frequency) are included at the appropriate places. To enter a query condition,

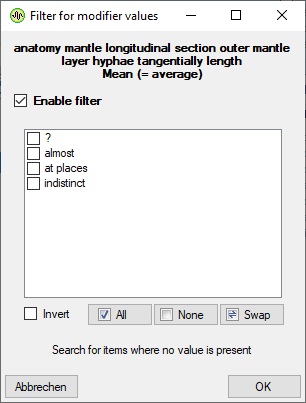

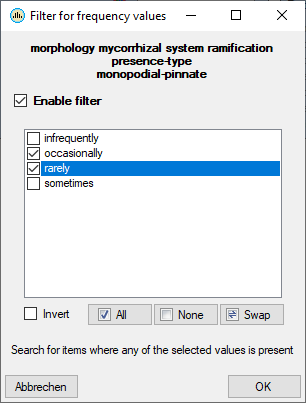

click the button and a window as shown below will be opened.
You may select the modifier rsp. frequency values for
filtering from the recommended values
of the current descriptor. Check the option Invert to invert the
search criteria. A hint text explaining the resulting filter will be displayed in
the lower area of the window. When you click OK the additional
query condition will be active and the icon background changes to
red (
,
). If you want to remove the query
condition, open the form, uncheck the Enable filter option and
click OK.
Continue with:
