Integrated Pest Managment

The Integrated Pest Management (= IPM) in the DiversityWorkbench is designed to support the recording and evaluation of IPM-related data. IPM is organized via Tasks.

The taxon specific data are stored in DiversityTaxonNames.

DiversityCollection allows

• Monitoring of pests, bycatch etc. in resp. on
  • Traps
  • Collections
  • Fascicles
  • Specimens
• Recording of
  • Cleanings
  • Treatments
  • Application of beneficials
  • Sensor data
• Generation of
  • Reports
  • Charts
  • Plans

Menu

• Collection: Handling the collections in the tree
  • Change to top collection: Change to the parent collection of the current top collection
  • Add collection
• Taxa: Setting the selection of taxa shown in the interface
  • Pests
  • Bycatch
  • Beneficials
• Settings: Showing additional options to document pests
  • Show pests outside traps
  • Show pests on specimen
  • Show pests on groups of specimen

Data

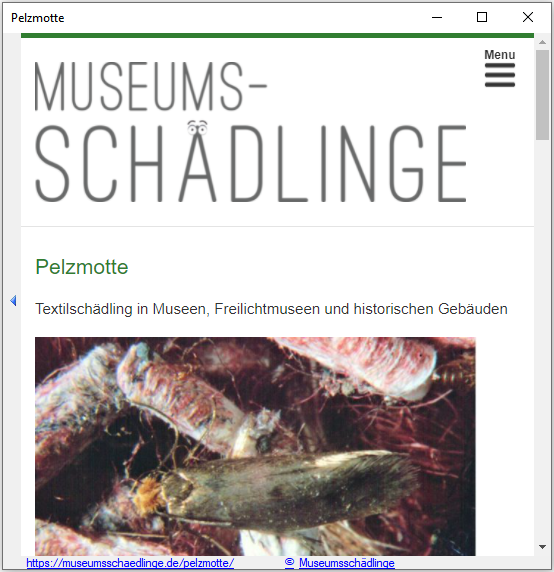

The tables below the inspection dates contain the results for pests and bycatch. Optionally additional tables for pests on e.g. specimen can be included. The first column shows the group, the second the taxon with a link to resources in DiversityTaxonNames. If you click on the link the available resources will be shown (see below).

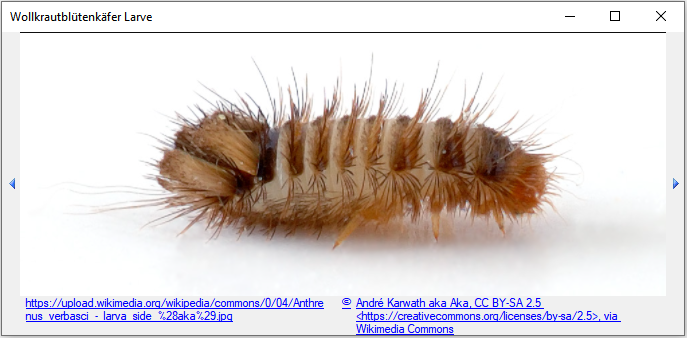

Column 3 shows preview of images in DiversityTaxonNames. To see the original image together with additional images, click on the preview image (see below).

The next columns contain the counts of the taxa detected in the traps. The acronyms of the traps within the collection hierarchy are shown in the header. The numbers, states and notes for the taxa detected in the traps are entered here as described in chapter Recording pests.
