Task

Main sectors

The image below gives you an overview of the main sectors related to the tasks.

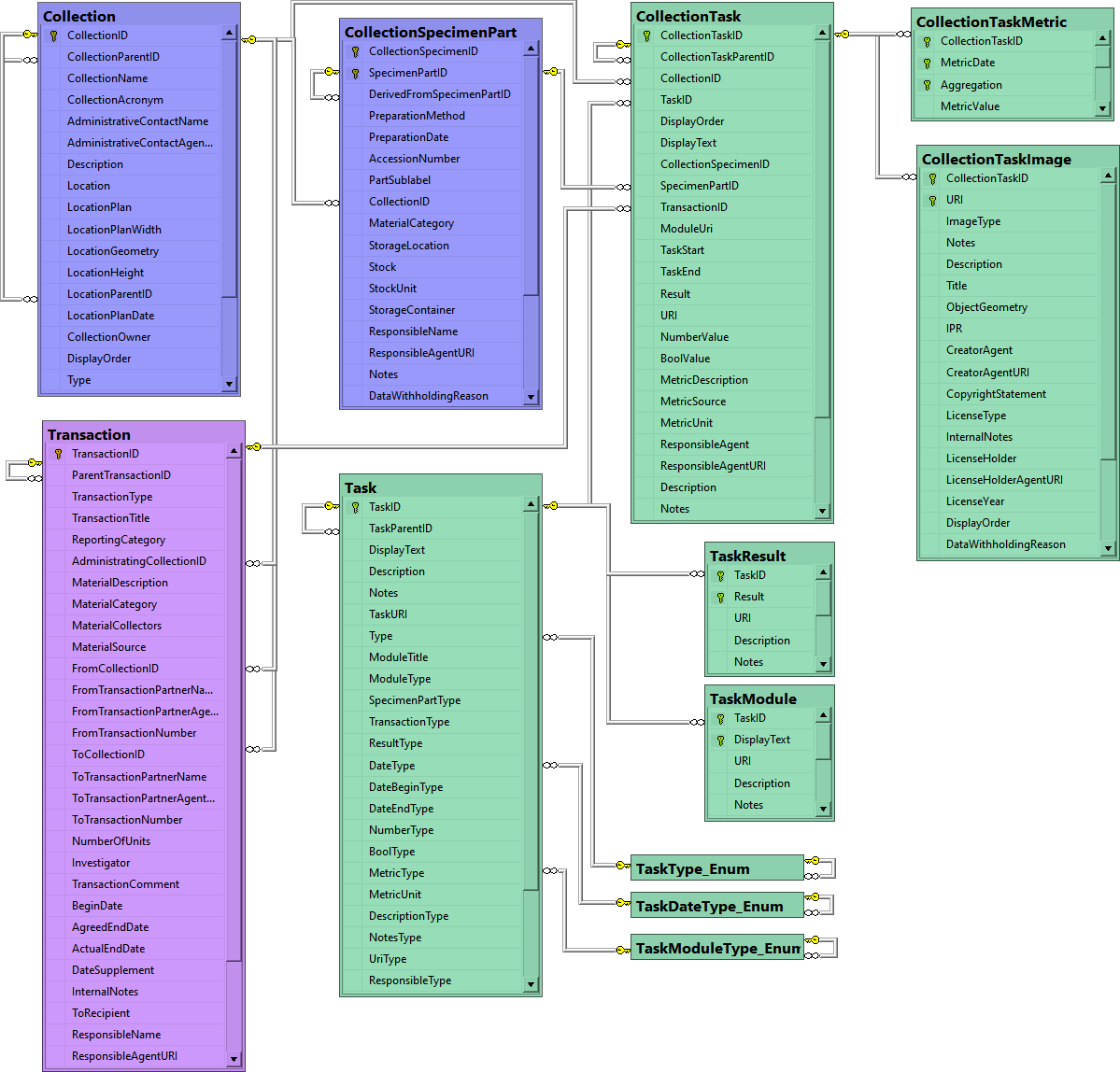

Tasks are used for example to organize IMP within a collection. The tasks possible for a collection are defined within the table Task. The tables related to tasks within a collection are shown in the diagramm below. The table Task contains the definitions for the tasks. The tables TaskResult and TaskModule contain predefined list for results resp. links to a DiversityWorkbench module. Types for the tasks are defined in the table TaskType_Enum. The table CollectionTask finally contains the tasks for a collection, the table CollectionTaskMetric numeric values collected e.g. by a sensor and the table CollectionTaskImage holding any related resources like images.

To define tasks, choose  Administration - Task  from the menu. A window as shown below will open.

View

To show the site of the URI fo the task if available, choose show URI.

Import

To import data from a tab separated text file, choose from the menu. For further details see chapter ImportWizard.

Types

To edit types click on the button.

Table editor

To edit the data with the datatable click on the button. For details check the TableEditors section.

Feedback

To send a feedback to the software developer click on the feedback button.

History

To view the history of a dataset, click on the [] button. A window with the history will open. For more details see the section History.



Details

The details of the task like e.g. type or display text are set in the upper part underneath the hierarchy (see above), the details for Collection tasks are defined in the lowest part. Only those properties that are specified by any text or definition are availabe for the depending collection tasks. There are several contents that are possible for a

Colletion task:

  • Specimen part: If the collection task is related to a certain part of a specimen in the collection
  • Transaction: If the collection task is related to a certain transaction
  • URI: If the collection task should contain an URI, the description for the URI
  • Responsible: If there is a responsible person or institution for a task, the corresponding description
  • Date: If the collection task should contain a date and or time.
    • You can choose among several options:
      • Date
      • Date from to
      • Date & Time
      • Date & Time from to
      • Time
      • Time from to
    • Begin: If present, the description of the begin
    • End: If present, the description of the endS
  • Description: If the collection task should contain a desciption, the description for the desciption
  • Notes:: If the collection task should contain notes, the description for the notes

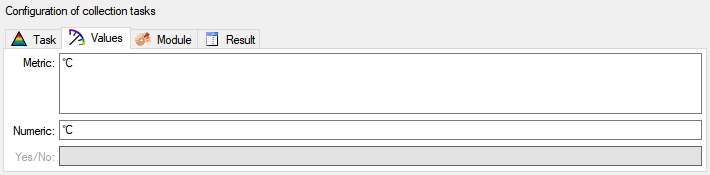

  • Metric:: If the collection task contains values collected from a sensor e.g. via Prometheus, the description for the metric
  • Numeric: If the collection task should contain a numeric value, the description for the numeric value
  • Yes/No: If the collection task should contain a boolean value, the description for the Boolean value

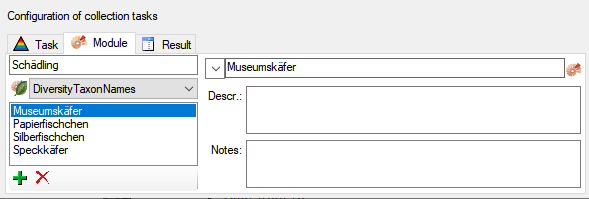

  • Module: If the collection task should contain a link to a module of the DiversityWorkbench, the description and the type of the module. There are several modules for which links may be defined
    • DiversitAgents
    • DiversitCollection
    • DiversitGazetteer
    • DiversitProjects
    • DiversitSamplingPlots
    • DiversitScientificTerms
    • DiversitTaxonNames If the values should be taken from a list, the entries are defined here as shown in the image below

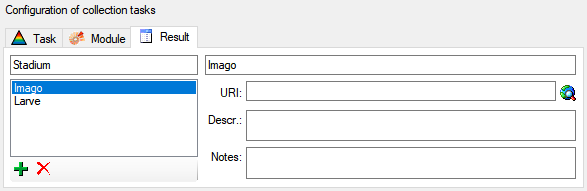

  • Result: If the collection task should contain a text result, the description for the result. Similar to the module you can provide a list of values for selection as shown in the image below.

insert a new analysis to an organism select the organism in the upper tree. Then select the type of the analysis from the drop down list as shown below.
