Integrated Pest Managment

Taxa

The IPM (Integrated Pest Managment) uses DiversityTaxonNames as a backbone for Taxa. By default the public available database DiversityTaxonNames_TaxaVaria on the server tnt.diversityworkbench.de is used as a source. If you want to build your own source, you have to follow the guidelines below to ensure the functionallity of the forms.

Resources

Preview images

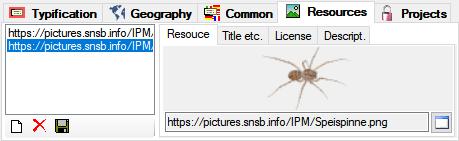

The form for handling IPM data in DiversityCollection shows preview images for the objects like pests as shown below.

These preview images are retrieved from the corresponding lists in DiversityTaxonNames. To create these previews, choose a source, align it, remove the background and reduce the size to 50 (height) x 100 (width) pixel.

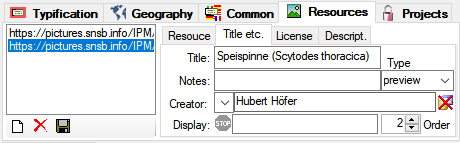

Insert the preview image as a resource (see above) with the Type preview (see below). The title of the image must correspond to the stage resp. remain as defined in the taxon list. If the preview image is taken from a foreign source you shoud enter the source, copyright etc. of image (see below).

Images

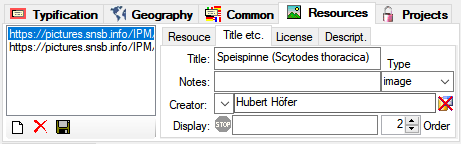

The original image of the preview should be included as as second image with coresponding data but Type image (see below). These images will be shown if the user clicks on the preview image in the table. You may add additional images.

Resources

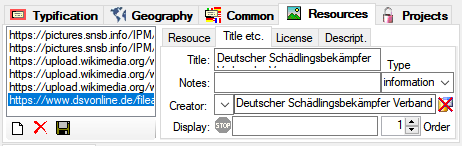

Resources that should be shown when the user click on the link in the second column are added as shown below with the type information.

Group

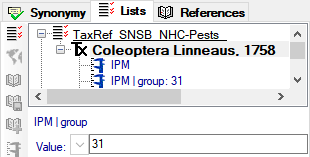

The group shown in the interface is retrieved from the list entries with the IPM - group marker where the value defines the sequence for the corresponding groups. These are shown in the first column of the IPM form.

Common names

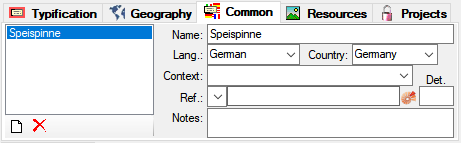

The first common name for the organisms or higher taxa are used for display in the IPM form. Please provide one common name for every taxon.

Life stages, remains

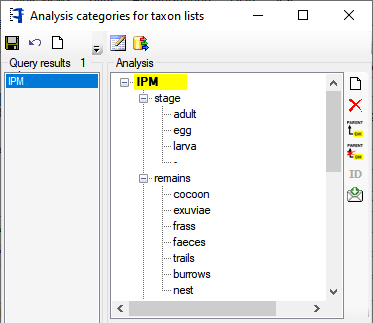

The life stages and remains of a taxon defined in DiversityTaxonNames (see below).

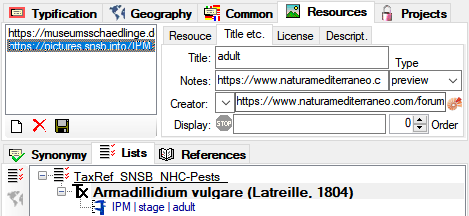

To make them available in DiversityCollection they must be included in the corresponding list (see below).
