Regulations

Adding to event and part

As a first step the regulations resp. their title must be added for the collection events either via the button or for several events in the maintenance.

Then you can select a specimen part part and use the button to select a regulation from the list in the events.

graph TD;
    EventStart[Add regulation to collection event] --> |<i class="fas fa-globe"></i>| Button(For current collection event)
    EventStart --> Maintenance(For several collection events)
    Maintenance -->|<i class="fas fa-cog"></i>| MaintenanceRegulation[Maintenance - Regulations]
    Button --> Event[Collection event]
    Event --> Part[Add regulation to specimen part]
    MaintenanceRegulation --> Event

To add a regulation to a specimen part, choose the part to which the regulation should be added and click on the button. A window as below will open, listing all available regulations (see below) ...

Choose the regulation you want to insert and click OK. The regulation will be inserted as shown below.

To remove any regulation use the button.

Documents

Depending on your permissions you can see the documents stored for a regulation when you select the regulation listed for the event.

If you do not have the needed permissions, you will get a corresponding result as shown below.

In case the selected reglulation contains no documents, this will be indicated as shown below.

Administration

To administrate the regulations choose Administration - Transaction management - Transaction  ... from the menu. See chapter Transaction for further details.

Datatables

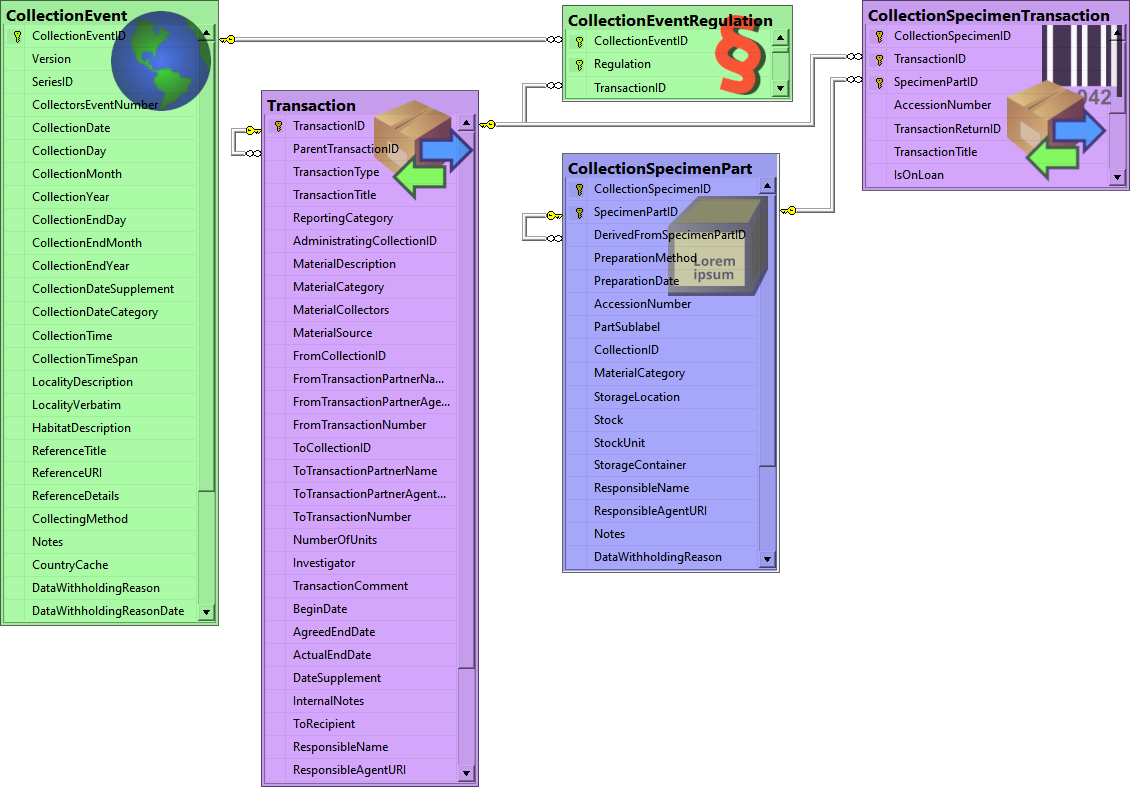

The diagram below shows the tables involved in the regulations.
