Generate Diagram

Generate diagram

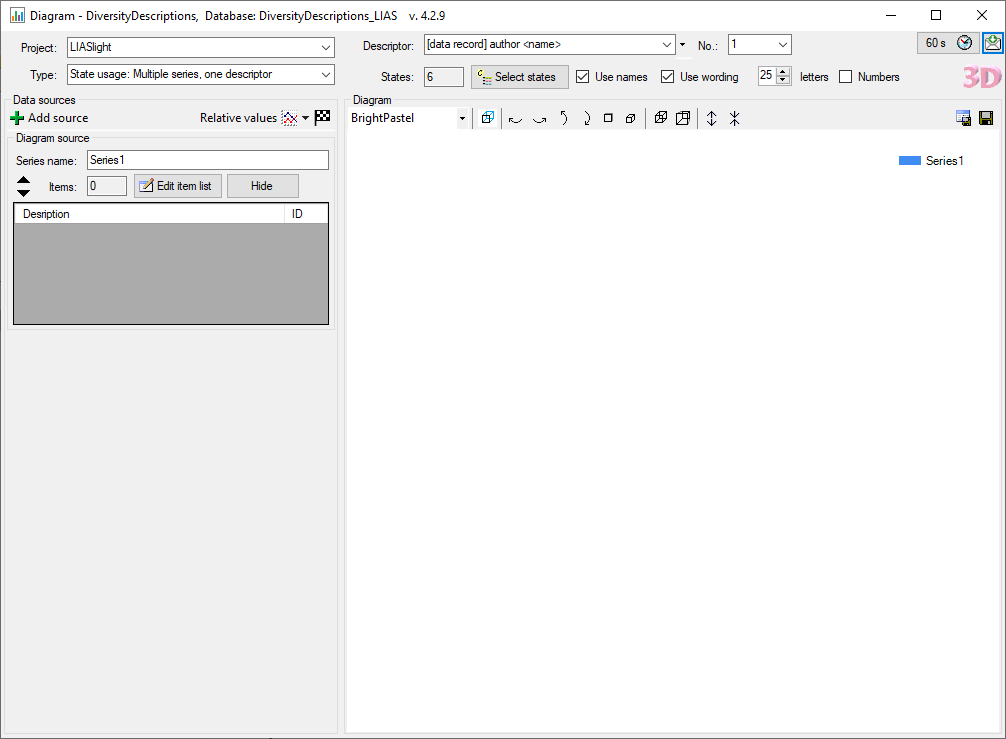

This tool allows you to generate charts that show the categorical state or descriptor usage for one or more sets of descriptions. To use this tool, choose Data ->  Generate diagram … from the menu. A window with will open as shown below.

There are the following diagram Types available:

• Categorical state usage for one or more source series
• Categorical state cross-match for one source series
• Descriptor usage for one or more source series

Selecting diagram sources

By default at least one control Diagram source is present in the area Data sources at the left of the window. Here you select the descriptions that shall be used as data source for a diagram series. In text box Series name you can enter a label for the data source that will appear in the diagram legend. After selecting the Project in the main window (see image above) click on the button Edit item list to open a description query form (see window below).

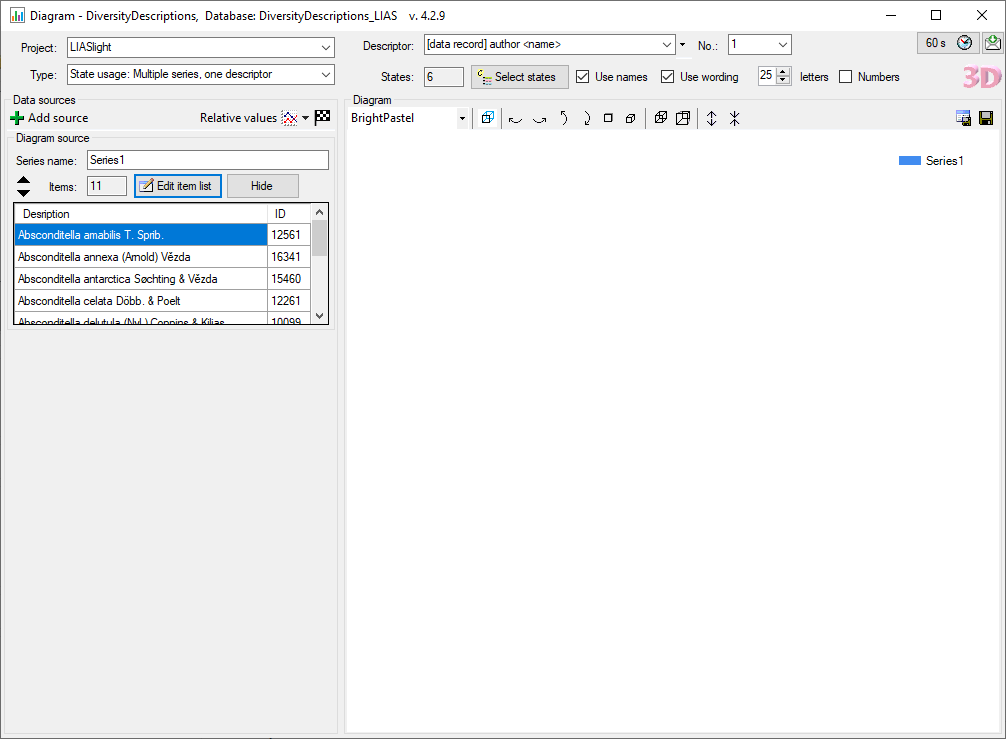

Start a query and select the entries you want to take over into the result list. By clicking the button Add you insert the selected entries. With button Delete all you can clear the result list. You may select all entries by clicking the all button, deselect all entries by clicking the none button or toggle your selection by clicking the swap button. Finally, click OK to close the query window (see image below).
